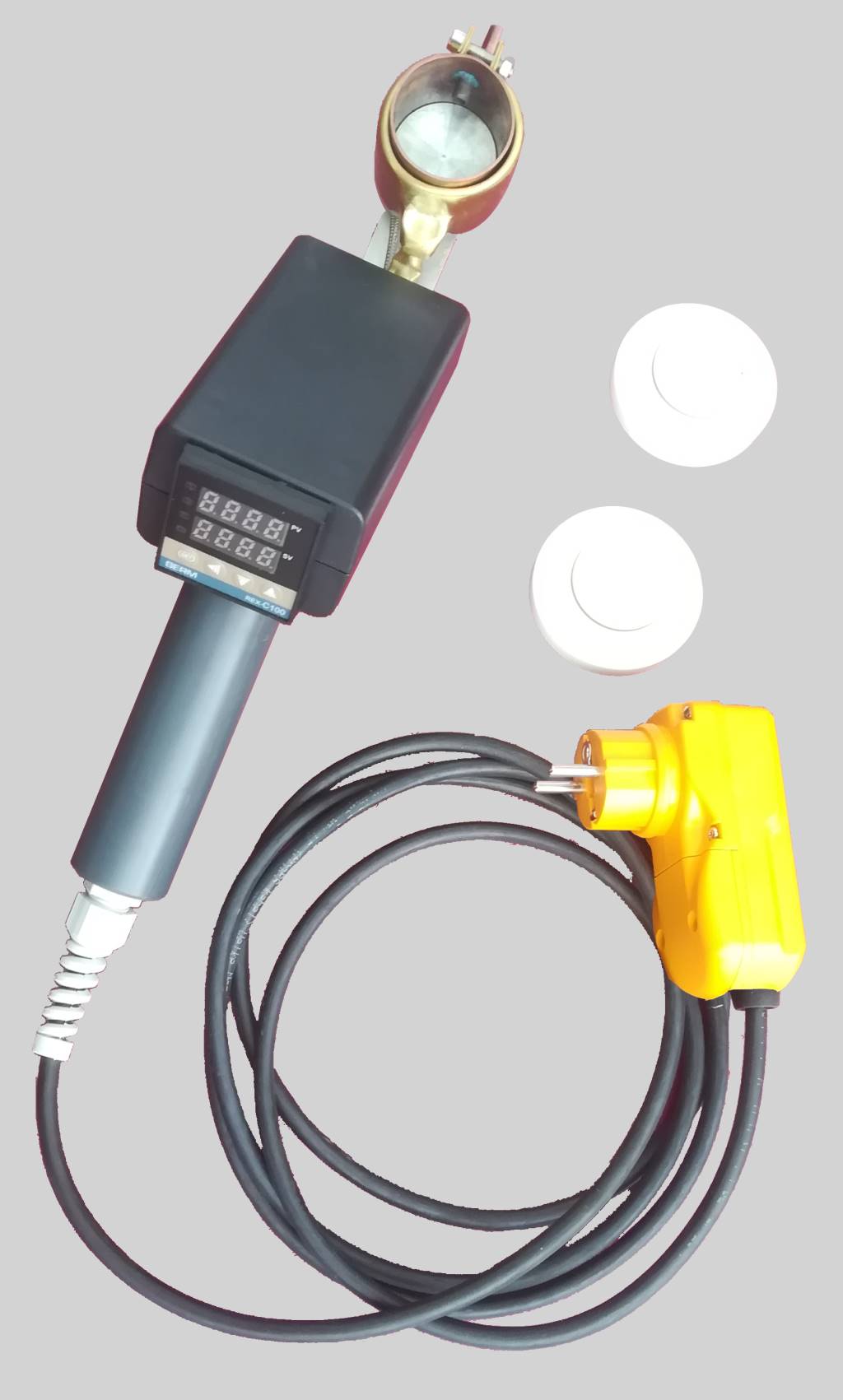

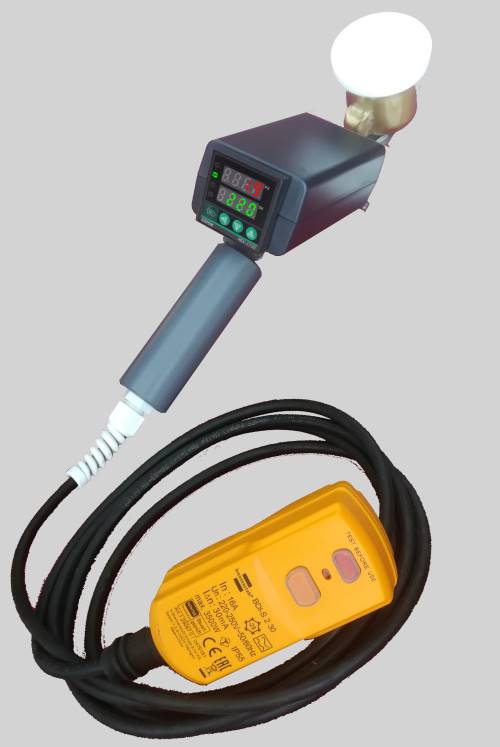

The 4VAP is an oxalic acid evaporator with digitally controlled evaporation temperature designed for commercial or multi-hive beekeepers. We make this vaporizer from 2016.

The stainless steel chamber of the 4VAP vaporizer is heated by a heating element to 230V. The temperature is controlled by a programmable thermostat and is factory preset to 220 ° C.

We also offer a version with a copper evaporation chamber - copper is a better conductor of heat.

The evaporator includes two teflon caps, which also serve as an acid bowl. The evaporated acid smoke is sublimed from the chamber into the beehive. The evaporation time of 2 g of acid is about 30 seconds.

This vaporizer is designed for use in locations where 230V power is available.

 Technical parameters

Technical parameters:

  • Weight :  1,3 kg
  • Dimensions: 35 x 8 x 13 cm
  • Heater output: 250 Watt
  • Temperature range: 0 - 250° C
  • Evaporation time 2 grams: approx. 30 to 40 seconds
  • Power source:  mains 230V, 50Hz, 1,08A (110V optional)
  • Supply cable length:  1,5m
  • Material: evaporation chamber - Cu and Al, handle - insulator - plastic


Package contents

Package contents:

  • 1x 4VAP - professional oxalic acid vaporizer
  • 2x white teflon cap
  • 1x measuring cup for crystals (1gram)
  • 1x teflon tube 5cm (temperature cover of the outlet copper tube)
  • 1x instruction manual


Instruction Manual

The product can be ordered using the contact form below or through our contacts.
